The TMT LEDs Midi Stick Components offer the most flexible cabinet lighting and retrofit product on the market. This innovative system gives you the flexibility to light any sized sign cabinet, single or double sided, without having increase your inventory!
The Midi Stick comes in 240cm lengths that you cut to whatever size you need. Once cut to length, simply snap any of the Midi product family modules into the unique “I-Beam” design and install in your sign cabinet! This ground breaking design allows you to adjust the modules closer together should you want a brighter cabinet by simply sliding them closer together. The rigid “I-Beam” design also allows installing horizontally with no “sag” in the middle.

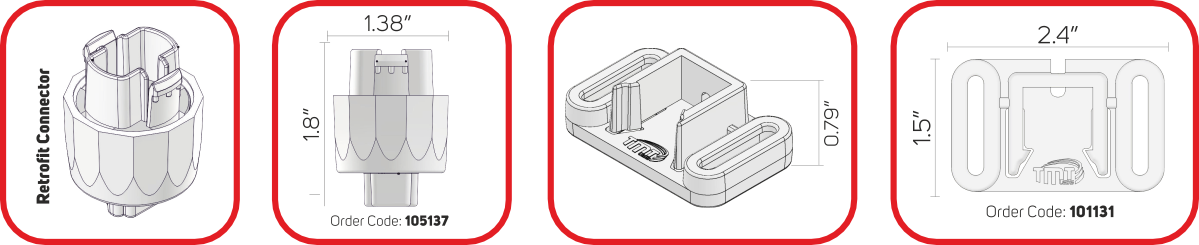

For retrofit applications, nothing beats the Midi Stick system. Simply outfit your trucks with a stack of 240cm Midi Sticks and a couple of bags of modules and you can retrofit any sign without having to stock multiple lengths of our competitors pre-made stick products. Simply cut the stick to length, snap on the retrofit connector, snap in the Midi modules and install!
Replacing 300cm lamps? Simply connect a 60cm piece of Midi Stick to an 240cm length using two of the New Construction connectors back to back! This innovation in retrofit technology enables you to virtually outfit any cabinet without having to do a survey first!
The Midi Stick comes in 8’ lengths that you cut to whatever size you need. Once cut to length, simply snap any of the Midi product family modules into the unique “I-Beam” design and install in your sign cabinet!
Single Side with Midi 4 24V | Single Side with Midi 3 12V | |||||||
---|---|---|---|---|---|---|---|---|
Length cm | Input Voltage | # of Modules | Total Lumen | Midi Stick Watt | Input Voltage | # of Modules | Total Lumen | Midi Stick Watt |
60 | 24V | 2 | 600 | 4 | 12V | 3 | 540 | 4,5 |
90 | 24V | 3 | 900 | 6 | 12V | 5 | 900 | 7,5 |
120 | 24V | 4 | 1200 | 8 | 12V | 6 | 1080 | 9 |
150 | 24V | 5 | 1500 | 10 | 12V | 8 | 1440 | 12 |
180 | 24V | 6 | 1800 | 12 | 12V | 9 | 1620 | 13,5 |
210 | 24V | 7 | 2100 | 14 | 12V | 11 | 1980 | 16,5 |
240 | 24V | 8 | 2400 | 16 | 12V | 12 | 2160 | 18 |
270 | 24V | 9 | 2700 | 18 | 12V | 13 | 2340 | 19,5 |
300 | 24V | 10 | 3000 | 20 | 12V | 15 | 2700 | 22,5 |
Single Side with Midi 4 24V | Single Side with Midi 3 12V | |||||||
---|---|---|---|---|---|---|---|---|
Length cm | Input Voltage | # of Modules | Total Lumen | Midi Stick Watt | Input Voltage | # of Modules | Total Lumen | Midi Stick Watt |
60 | 24V | 4 | 1200 | 8 | 12V | 6 | 1080 | 9 |
90 | 24V | 6 | 1800 | 12 | 12V | 10 | 1800 | 15 |
120 | 24V | 8 | 2400 | 16 | 12V | 12 | 2160 | 18 |
150 | 24V | 10 | 3000 | 20 | 12V | 16 | 2880 | 24 |
180 | 24V | 12 | 3600 | 24 | 12V | 18 | 3240 | 27 |
210 | 24V | 14 | 4200 | 28 | 12V | 22 | 3960 | 33 |
240 | 24V | 16 | 4800 | 32 | 12V | 24 | 4320 | 36 |
270 | 24V | 18 | 5400 | 36 | 12V | 26 | 4680 | 39 |
300 | 24V | 20 | 6000 | 40 | 12V | 30 | 5400 | 45 |

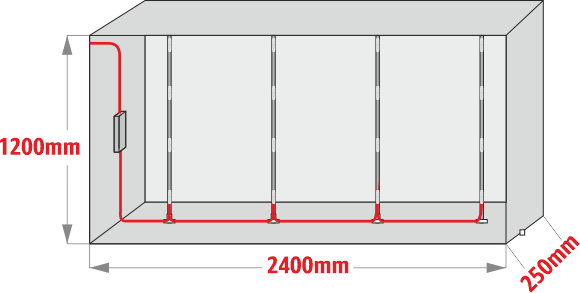

120 x 240 x 25cm Double Side Cabinet Lighting Solution with Midi 4 12V 1,68W
Product: | Midi 4 12V 1,68 Watt |
# of Modules per Bar: | 8 pcs |
Total # of Modules: | 32 pcs |
Total Lumen: | 8000 Lm |
Power Consumption: | 53,76 Watt |
Power Supply: | 1x60 watt Class 2 Power Supply |
