Tiny LED Module
For extra small and thin channel letters
Up to 115Lm/W
The TMT LEDs Silver Series Tiny LED module is designed for channel letter with a narrow stroke width. With its small footprint, the Tiny module fits in strokes as narrow as 0.5” with clear light dispersion. It features the same CrystaLens optics and has a 170° x 130° wide viewing angle that expands its coverage evenly across the face requiring fewer modules per letter than other comparable products in the market.
Color options available
37-41 lumens per module

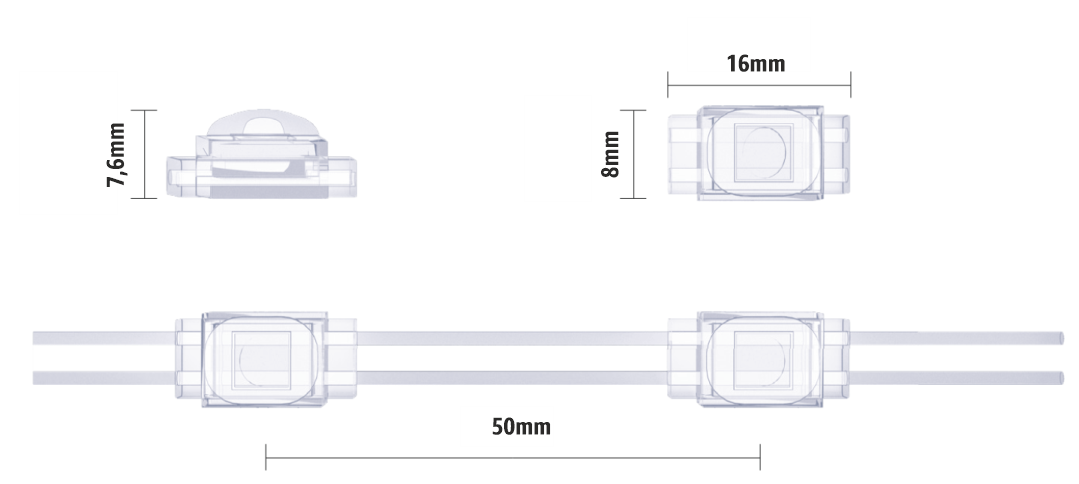

Very small footprint 0.33’’ x 0.63’’
Good for narrow applications (as small as 0.5”)
Up to 115 lumens per watt
Ideal for 1-3 inch Deep applications
Luminous Efficacy
115 Lm/W
115 Lm/W
Wattage per Module
0.36W
0.36W
Lifetime TM21
>60.000 Hours
>60.000 Hours
Warranty
5 Years
5 Years
Ingress Protection
IP 67
IP 67
Packaging
100 Modules
100 Modules
