Midi Game Changer Edge-lit

Edge-lit LED Module for Lightboxes
Up to 155Lm/W

The Game Changer Gold Series Midi Edge module is designed to illuminate sign cabinets by installing on the perimeter of the cabinet. The innovative CrystaLens optics provide an 18° X 40° beam angle delivers industry leading illumination up to 7 feet across! These phenomenal modules outperforms all other edge lighting products in the industry by delivering higher lumen output while reducing power requirements by more than 30% making it the perfect choice for sign cabinets, perimeter lighting and wall washers! Great for single and double sided cabinets and retrofits!

Luminous Efficacy
155 Lm/W
Wattage per Module
1.68W / 2.40W
Lifetime TM21
>60.000 Hours
Warranty
5 Years
Ingress Protection
IP 67
Packaging
4x25 Modules / Bag

Product Models

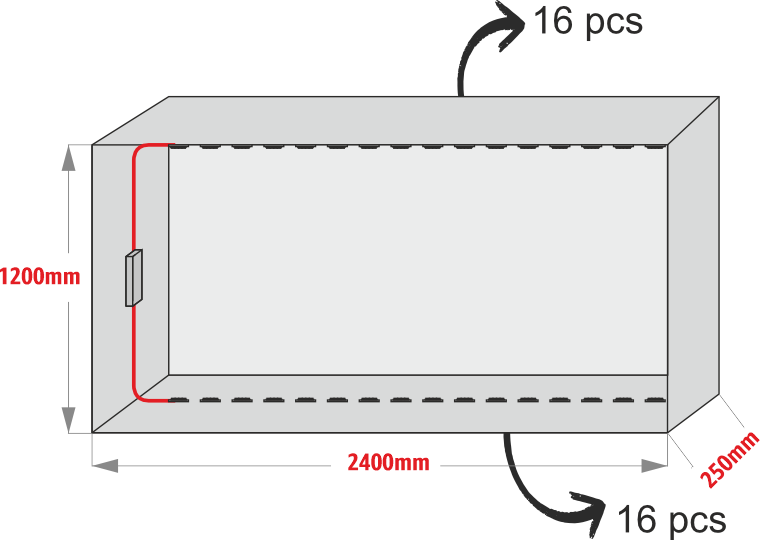

Application Example #1

120 x 240 x 25cm Double Side Cabinet Lighting Solution with Midi Edge 2,4W 12V

Product: Midi 4 12V 2,4 Watt
Total # of Modules: 32 pcs
Total Lumen: 10240 Lm
Power Consumption: 76,8 Watt
Power Supply: 1x100 watt Class 2 Power Supply

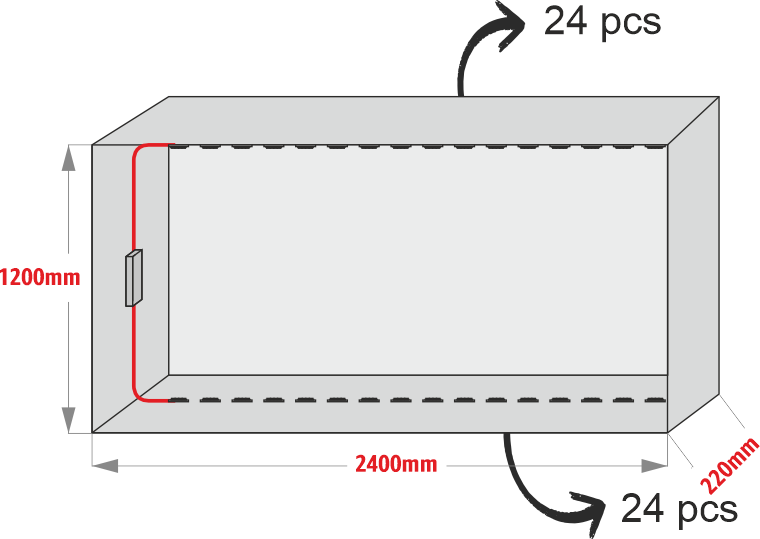

Application Example #2

120 x 240 x 22cm Double Side Cabinet Lighting Solution with Midi Edge 2,4W 12V

Product: Midi 4 12V 2,4 Watt
Total # of Modules: 48 pcs
Total Lumen: 15360 Lm
Power Consumption: 115,2 Watt
Power Supply: 1x150 watt Class 2 Power Supply

You can double up the quantity of modules by installing the modules to end to end using our innovative Cable Hiding Technology


Beam Angle

Midi Game Changer Edge-lit LED Modules have 20°x45° beam angle.

Beam Angle

Technical Details

Midi Game Changer Edge-lit LED Modules have 175mm modules space at standard production.
Module spaces can be changeable upon request on mass production.

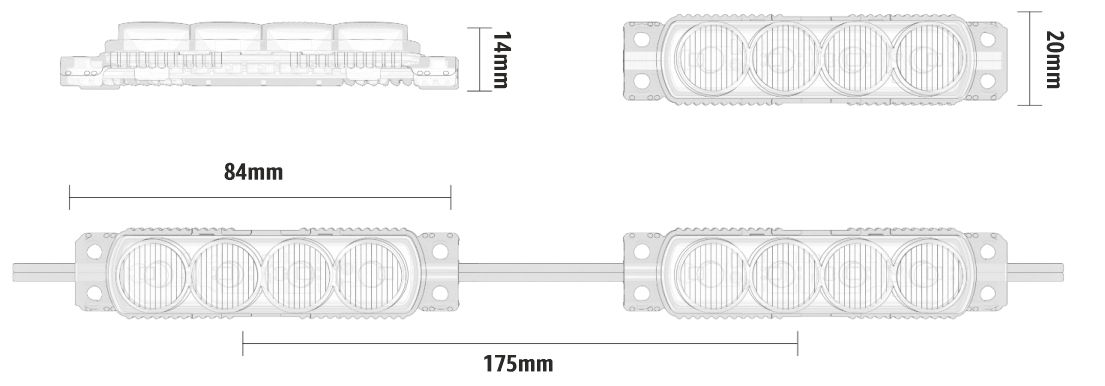

Technical Details
Width: 20mm
Length: 84mm
Height: 14mm
Module Spacing: 175mm
