Slim LED Module

OEM Production Available
For medium and large channel letters

The TMT LEDs Silver Series Slim LED module is designed to compete with and outperform other 3 diode economy modules in the market. The efficient design and CrystaLens optics deliver better light dispersion over large areas, requiring fewer modules per sign.
Available in .72 Watt and 1.08 Watt.

Custom color and power are available upon request with certain MOQ.

OEM production available
70-120 lumens per module
Up to 115 lumens per watt
Color options available
Reliable and economical solution
Luminous Efficacy
120 Lm/W
Wattage per Module
0.72W / 1.08W / 1.20W / 1.50W
Lifetime TM21
>60.000 Hours
Warranty
5 Years
Ingress Protection
IP 67
Packaging
50 Module

Product Models

Beam Angle

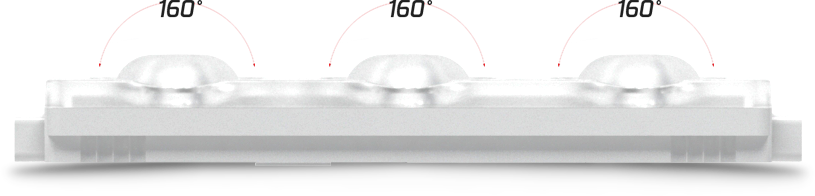

Slim LED Module LED Modules have 160 beam angle.

Beam Angle

Technical Details

Slim LED Module LED Modules have 145mm modules space at standard production.
Module spaces can be changeable upon request on mass production.

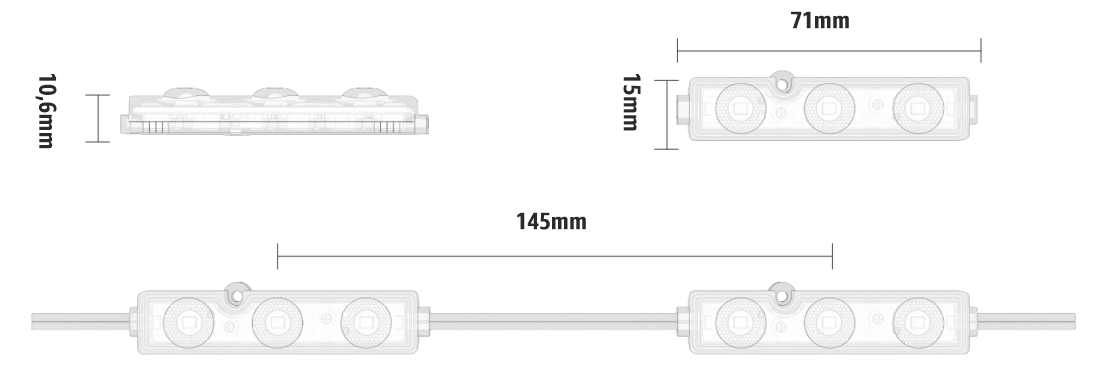

Technical Details
Width: 15mm
Length: 71mm
Height: 10,60mm
Module Spacing: 145mm
