Midi 3 Game Player

Best for medium and large channel letters
Up to 125Lm/W

The TMT LEDs Game Player Midi 3 module is designed for use in medium to large channel letters and sign cabinets. The advanced CrystaLens optics have a viewing angle of over 160° that expands the coverage of the light dispersion over a larger area, minimizing the number of modules per sign than competing products.

All of the Midi Series modules are compatible with the game changing Midi Stick with the revolutionary snap in technology. No need to tape it, screw it or glue it, just snap it and go! Midi Series modules include the unique Cable Hiding Technology that allows installers to adjust the spacing between modules, securing excess wire behind the module without needing separate holders, clips or silicone.

Cable Hiding Technology (Patent Pending)
Efficient Circuit Design (Patent Pending)
Clean White Technology
Snap-in compatible to TMT LEDs aluminum Midi Stick (Patent Pending)
146-182 Lumens per module
Up to 122 lumens per watt
Luminous Efficacy
122 Lm/W
Wattage per Module
0.72W / 1.08W / 1.20W / 1.50W
Lifetime TM21
>60.000 Hours
Warranty
5 Years
Ingress Protection
IP 67
Packaging
50 Modules

Product Models


Warning: Undefined variable $productApplications in C:\inetpub\vhosts\tmtledsasia.com\httpdocs\template\views\contents\productApplications.php on line 2

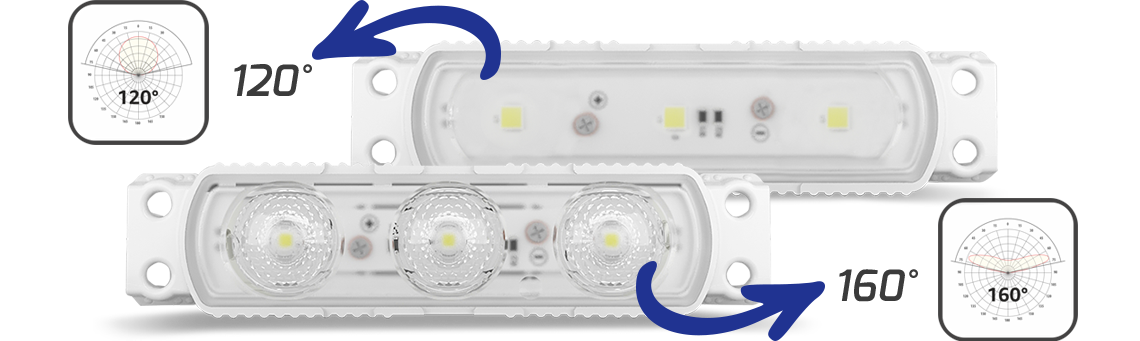

Beam Angle

Midi 3 Game Player LED Modules have 160° beam angle.

Beam Angle

Technical Details

Midi 3 Game Player LED Modules have 200mm modules space at standard production.
Module spaces can be changeable upon request on mass production.

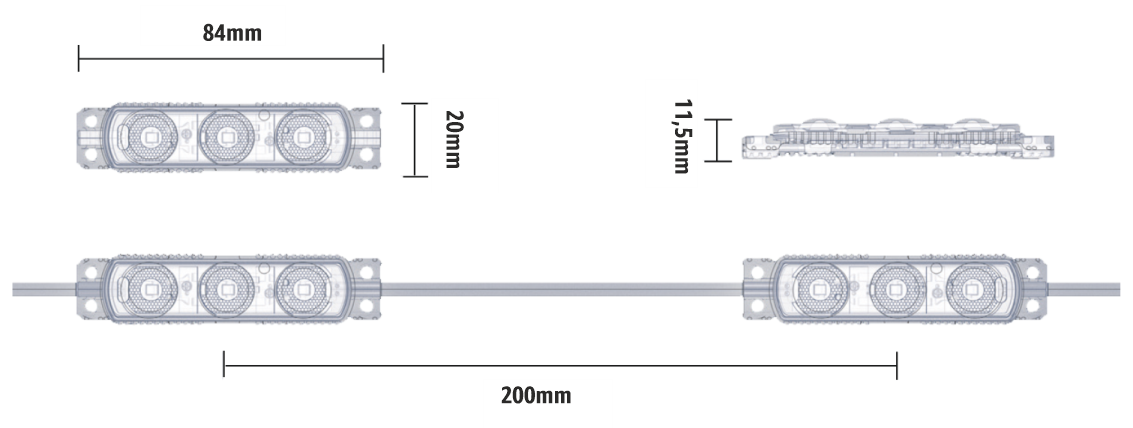

Technical Details
Width: 84mm
Length: 20mm
Height: 11,50mm
Module Spacing: 200mm

Downloads
