Mini 3 Game Player

Designed for very small channel letters
Up to 125Lm/W

TMT LEDs Game Player Mini Series is designed for small and shallow channel letters, which are hard to mount large modules inside and get clear light distribution.

It features an advanced optic technologies and each optics have got bigger than 160° wide angle and expands its coverage across the sign demanding fewer modules per sign than the original product range.

Luminous Efficacy
125 Lm/W
Wattage per Module
0.48W / 0.72W / 1.08W
Lifetime TM21
>60.000 Hours
Warranty
5 Years
Ingress Protection
IP 67
Packaging
50 Modules

Product Models

Dimensions

Mini Game Changer Player LED Modules have 150mm modules space at standard production.
Module spaces can be changeable upon request on mass production.

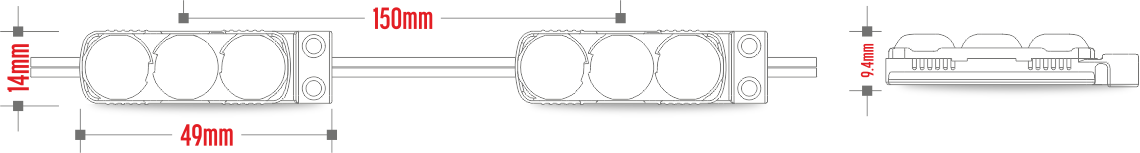

mini game player led module dimensions
Width: 49mm
Length: 14mm
Height: 9.4mm
Module Spacing: 150mm

Applications

Small Channel Letters
Small Channel Letters
Easy to mount LED modules inside the small channel letters.

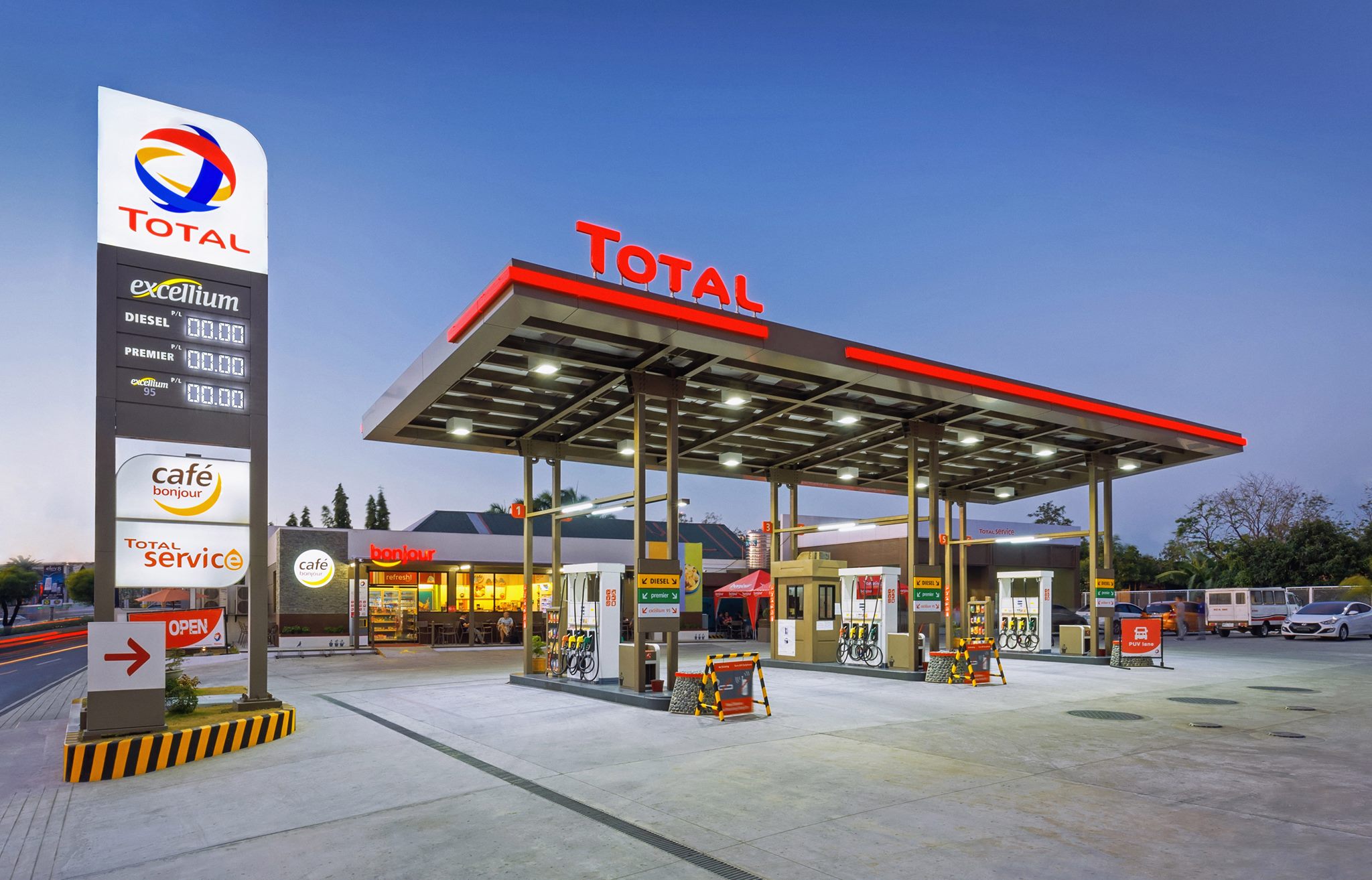

Gas Stations
Gas Stations
We use our LED Modules in gas stations for border lighting, totem & pylons, brand logo lighting

Beam Angle

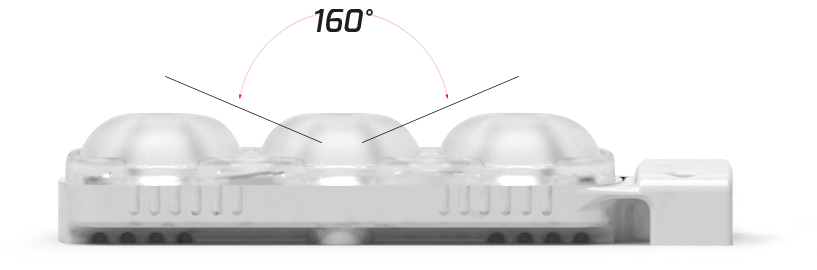

Mini 3 Game Player LED Modules have 160° beam angle.

Beam Angle

Technical Details

Mini 3 Game Player LED Modules have 150mm modules space at standard production.
Module spaces can be changeable upon request on mass production.

Technical Details
Width: 14mm
Length: 49mm
Height: 9,40mm
Module Spacing: 150mm
